InDUSTRY Studio Project
@the RED BOX

STORYBOARD

Storyboard A1 FINAL.jpg

DESIGN STATEMENT

By allowing the space to offer a captivating, memorable, educational, and inspirational user experience, I intend to create an interactive location for the youths. By incorporating biophilic components into the design of Red Box, a welcoming atmosphere will be produced. The design is able to provide sustainable lighting as well as visual links between the interior and outside areas due to the combination of louvered and open walls.

EXTERIOR OF THE BUILDING

WhatsApp Image 2023-04-22 at 10.17.17 PM.jpeg
WhatsApp Image 2023-04-22 at 10.17.22 PM (1).jpeg
WhatsApp Image 2023-04-22 at 10.17.21 PM.jpeg
WhatsApp Image 2023-04-22 at 10.17.22 PM.jpeg

INTERIOR OF THE BUILDING

WhatsApp Image 2023-04-22 at 10.17.26 PM.jpeg
WhatsApp Image 2023-04-22 at 10.17.24 PM.jpeg
WhatsApp Image 2023-04-22 at 10.17.20 PM (1).jpeg
WhatsApp Image 2023-04-22 at 10.17.19 PM.jpeg
WhatsApp Image 2023-04-22 at 10.17.19 PM (1).jpeg
WhatsApp Image 2023-04-22 at 10.17.18 PM.jpeg
WhatsApp Image 2023-04-22 at 10.17.07 PM.jpeg
WhatsApp Image 2023-04-22 at 10.17.01 PM.jpeg
WhatsApp Image 2023-04-22 at 10.16.59 PM.jpeg
WhatsApp Image 2023-04-22 at 10.17.02 PM.jpeg
WhatsApp Image 2023-04-22 at 10.17.02 PM (1).jpeg
WhatsApp Image 2023-04-22 at 10.17.01 PM (1).jpeg

MOODBOARD

Screenshot (203).png

MATERIALBOARD

Screenshot (205).png

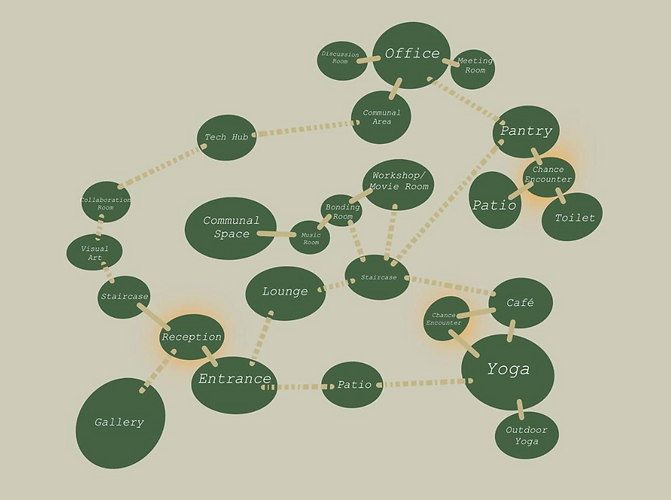

BUBBLE DIAGRAM

Screenshot (208).png

WALKTHROUGH

TECHNICAL DRAWINGS

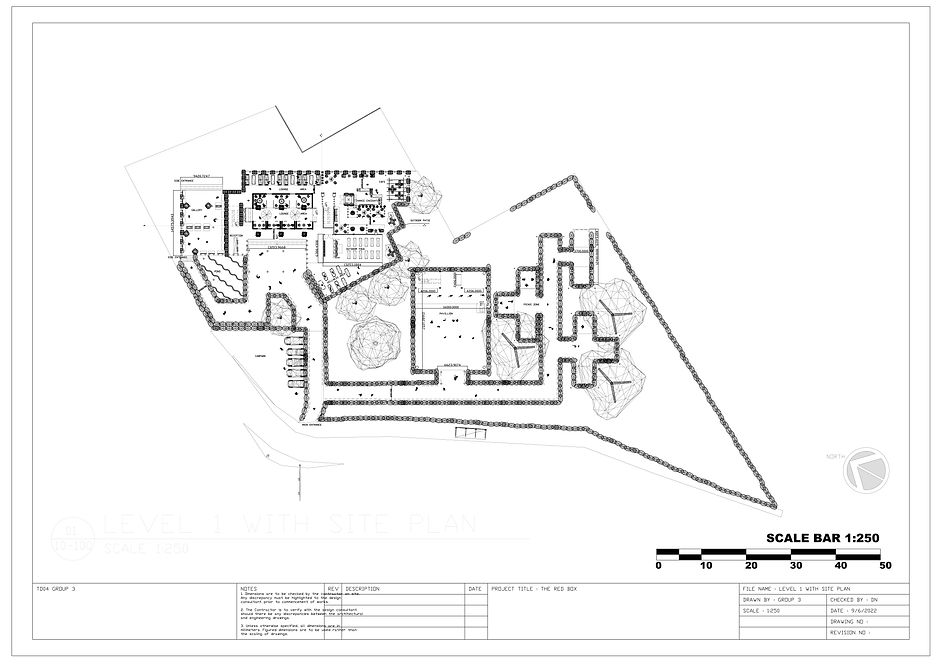

LEVEL 1 WITH SITE PLAN

Red Box Assignment 4  WITH PARK  - Floor Plan - Level 1 WITH SITE-Layout1.jpg

LEVEL 2

LEVEL 2 PLAN.jpg
Red Box Assignment 4  WITH PARK  - Floor Plan - Level 3-Layout1.jpg

LEVEL 3

SECTION A-A

Red Box Assignment 4  WITH PARK  - Floor Plan - SECTION A-A Layout1.jpg

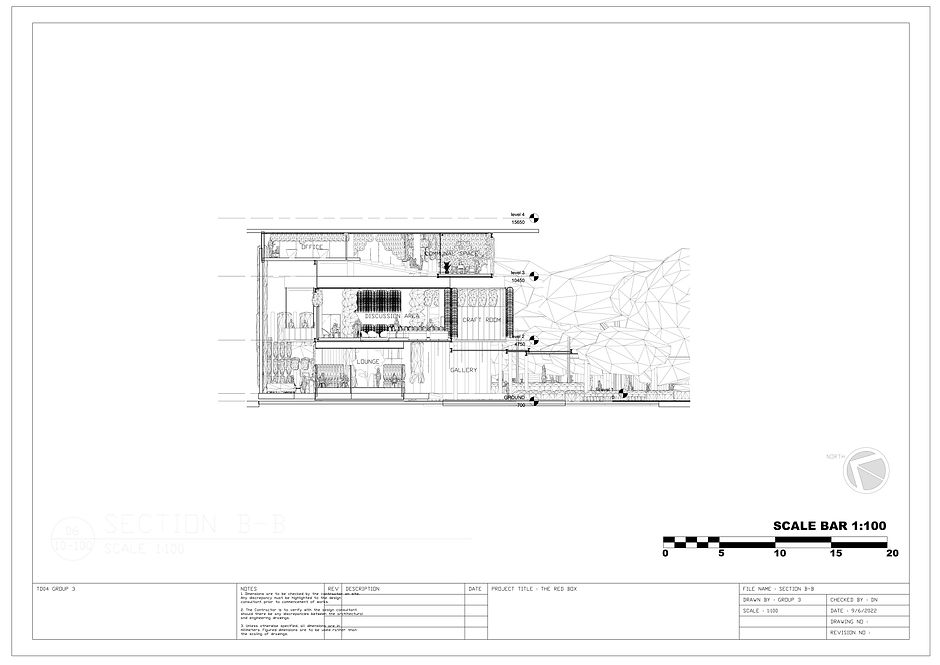

SECTION B-B

Red Box Assignment 4  WITH PARK  - Floor Plan - SECTION B-B Layout1.jpg
